Speed Controller with Indicator/In-line Type AS-FSG
|
・Stainless steel type
・The numerical indication of knob rotations for flow rate reduces flow setting time and setting errors. Flow rate can be controlled numerically with the indicator window. 4 indicator window directions are available. ・Larger push-lock type knob ・Improved reproducibility of flow rate |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|
| In-line type Stainless steel type |
AS1002FSG to AS4002FSG | - | φ3.2 to φ12 | φ1/8'' to φ1/2'' |
Speed Controller with Indicator/In-line TypeAS-FSG
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Download |
|---|---|---|
| In-line type Stainless steel type |
AS1002FSG to AS4002FSG |
|

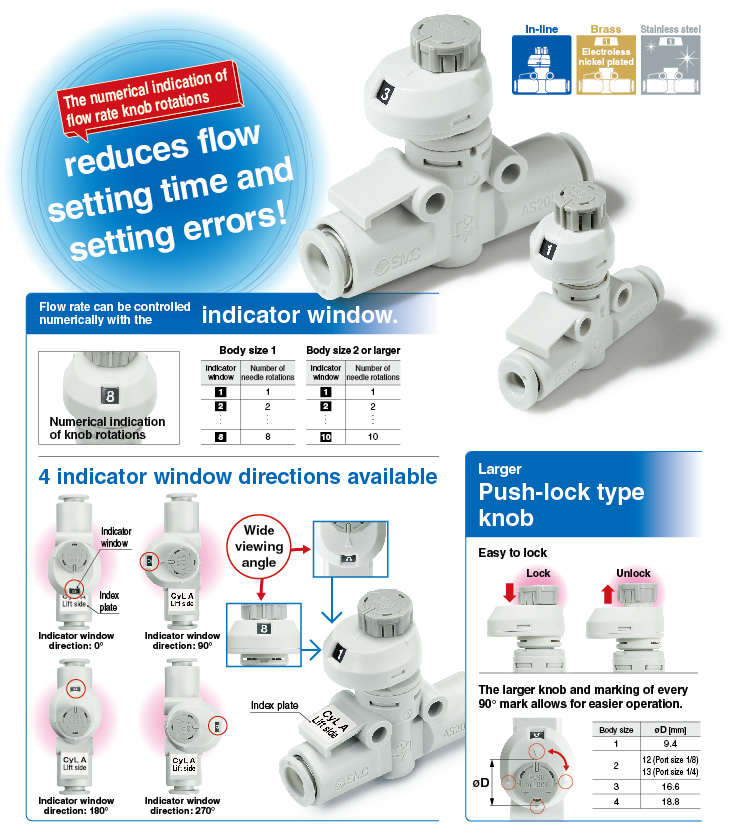

■Numerical indication of knob rotation for flow rate reduces flow setting time and setting errors

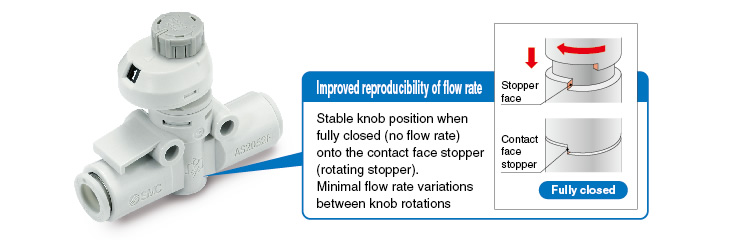

■Improved Reproducibility of Flow Rate
Stable knob position when fully closed (no flow rate) onto the contact face stopper (rotating stopper).
Minimal flow rate variations between knob rotations

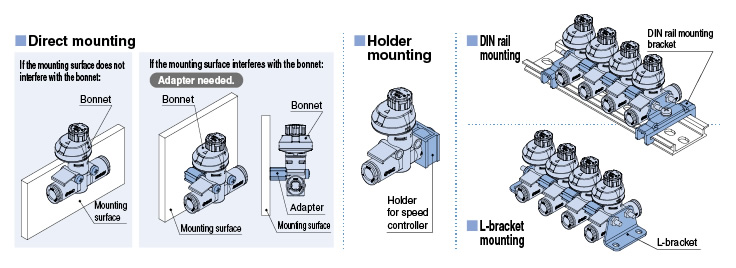

■Mounting variations
■Easy Identification of Product Type
・By index plate
It is possible to identify the product when multiple controllers are mounted and identify the flow direction by attaching an identification label.

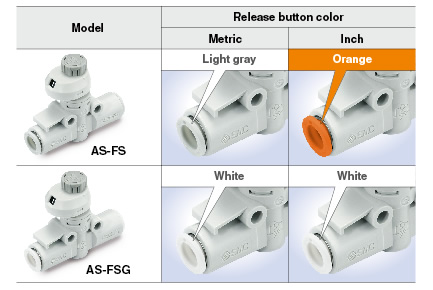

・By color
■Made to Order New

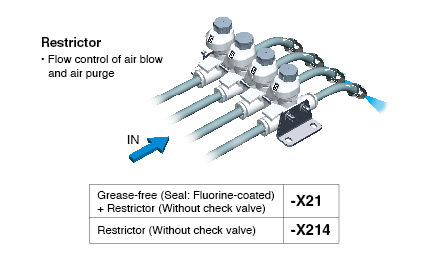

- Lubricant: Vaseline -X12
- Grease-free+Restrictor -X21
- Restrictor -X214
- Clean Series 10-
■The electroless nickel plating type is standardized.
■The stainless steel type is standardized.

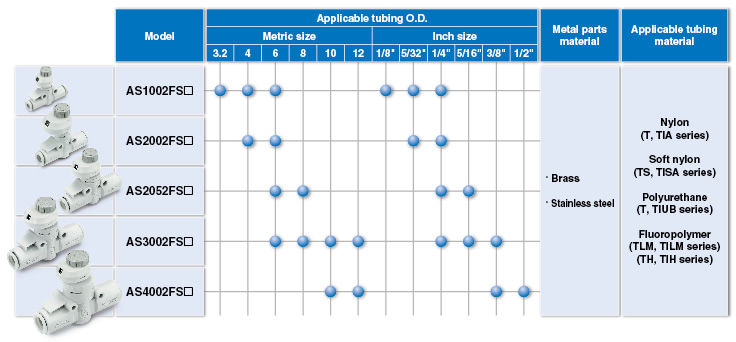

■Series variations
■Push-lock series variations
