Speed Exhaust Controller with One-touch Fitting Compact Type
JASV
JASV
|
・Quick exhaust valve and metering valve are integrated.
・Compact type Height: 12.7 mm (49% reduction) ・Effective in preventing condensation ・Applicable for high-speed cylinder actuation ・Push-lock type |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|
| Speed Exhaust Controller | JASV | M3×0.5 M5×0.8 10-32UNF R,NPT,G 1/8 |
φ3.2 to φ6 | φ1/8'' to φ1/4'' |
Speed Exhaust Controller with One-touch Fitting Compact Type<br>JASV
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Download |
|---|---|---|
| Speed Exhaust Controller | JASV |
|
■Quick exhaust valve and metering valve are integrated.
■Effective in preventing condensation
When operating an actuator with a small bore size and a short stroke at a high frequency, dew condensation (water droplets) may occur inside the piping depending on the conditions.
Quick exhaust valve and metering valve are integrated.
Prevents condensation from generating in the piping by directly exhausting the air in the cylinder to atmosphere
■Applicable for high-speed cylinder actuation
Direct exhaust port relieves air pressure from inside the cylinder regardless of the length of tubing used.

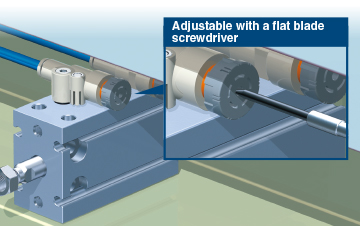

■Possible to adjust flow rate even in narrow spaces

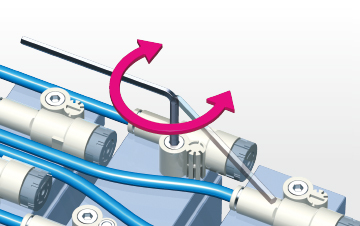

■Easily mounted using a hexagon wrench
■Variations

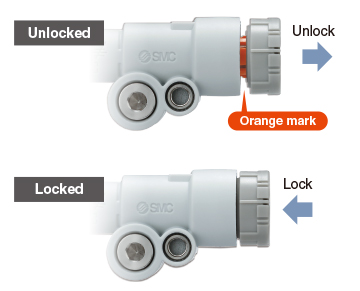

■Easy to use push-lock type
Locked and unlocked states can be easily confirmed.

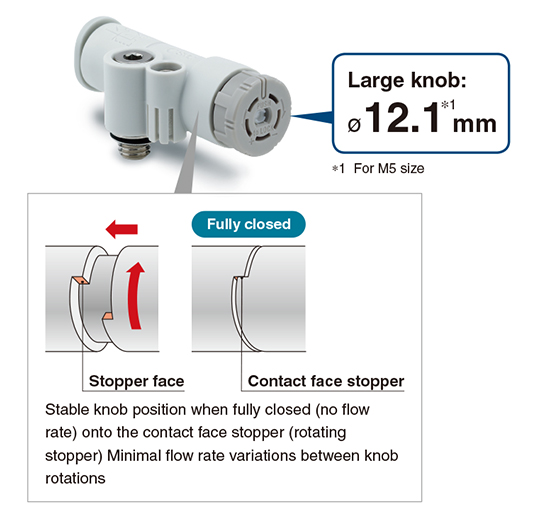

■Easier and consistent flow setting
■Available with the mounting stud on the left side or the right side
■Easy identification of product type
