Hand Valve VH200/300/400/600

	・The direction of air flow can be confirmed at a glance by the orientation of 　the handle.

Data Download CAD Manual PDF

Other Data	Safety Instructions　 3/4/5 Port Solenoid Valves/Precautions　 Selection/Technical Data　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b	Applicable cylinder size
Hand valve	VH200	1.0 MPa	1/4
Hand valve	VH300	1.0 MPa	1/4，3/8
Hand valve	VH400	1.0 MPa	1/4，3/8，1/2，3/4
Hand valve	VH600	0.7 MPa	3/4，1

Hand ValveVH200/300/400/600

Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Download
VH200
VH300
VH400
VH600

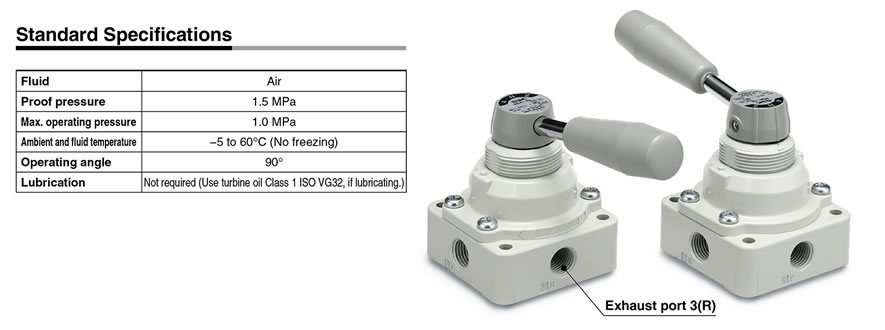

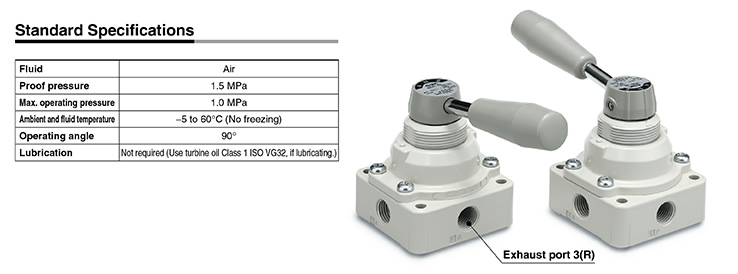

■Side exhaust added
