2/3-Port Mechanical Valve with One-touch Fitting VM100F
|
・Built-in One-touch fitting reduced installation space and less piping work
・Space saving Built-in One-touch fitting Approx. 35% reduction (25.8 mm shorter) ・Lightweight With resin body material 80% reduction (48 g lighter) ・Less man-hours replacing the actuator Mounting using a clip makes replacement easier. |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
|---|---|---|
| Mechanical valve | VM100F | 2/3 ports |
2/3-Port Mechanical Valve with One-touch FittingVM100F
| Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Download |
|---|---|
| VM100F |
|
■Built-in One-touch fitting reduced installation space and less piping work
Space saving･Lightweight

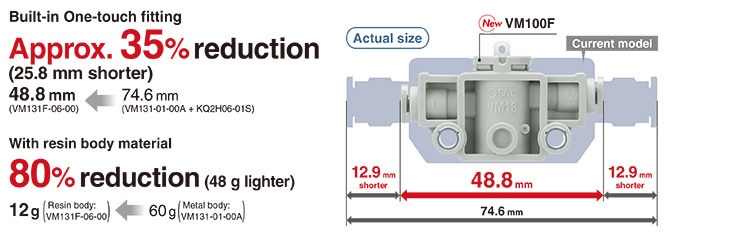

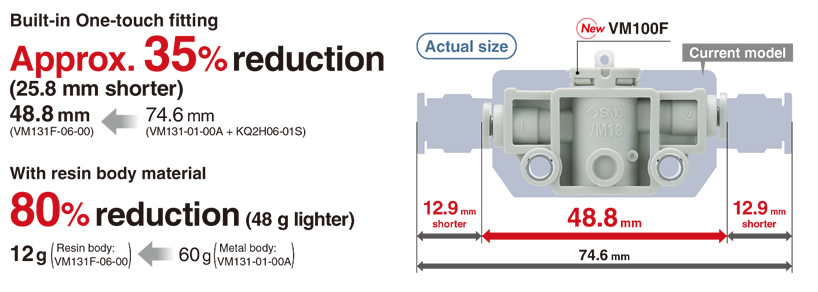

Built-in One-touch fitting Approx. 35% reduction (25.8 mm shorter)

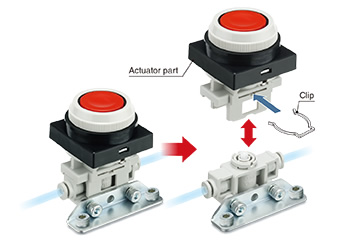

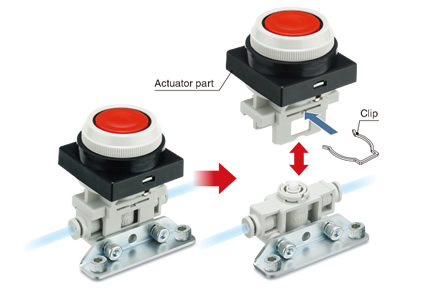

Less man-hours replacing the actuator
Mounting using a clip makes replacement easier.
Variations

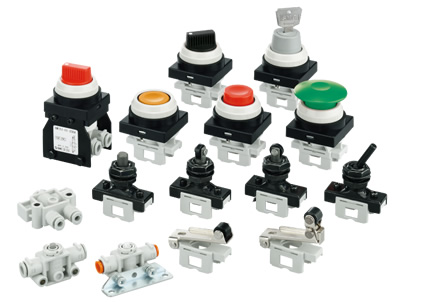

Actuator type
Mechanical operation: 5 types
Manual operation: 7 types

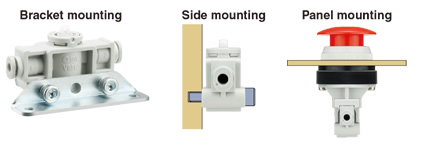

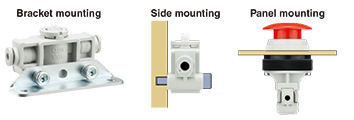

Mounting

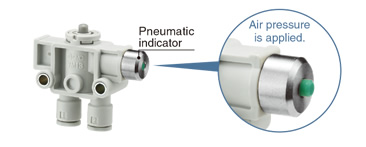

With miniature indicator (Bottom ported only)
Possible to check if air pressure is applied

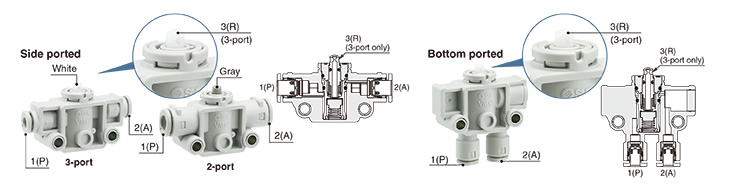

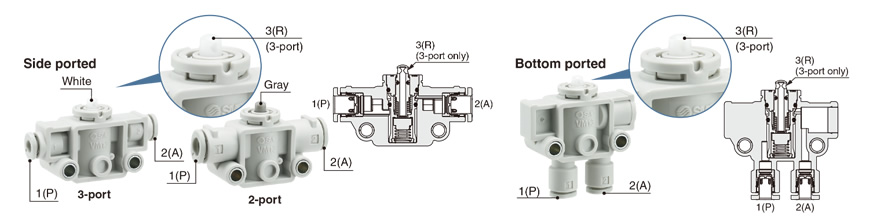

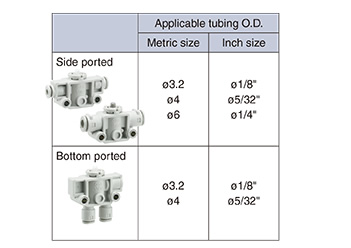

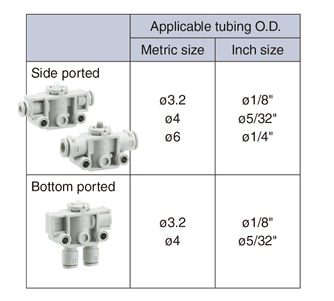

Piping direction
Mounting interchangeable with the conventional model
Mounting pitch and height are the same as the current model
Available in vacuum applications
−100 kPa to 0.7 Mpa

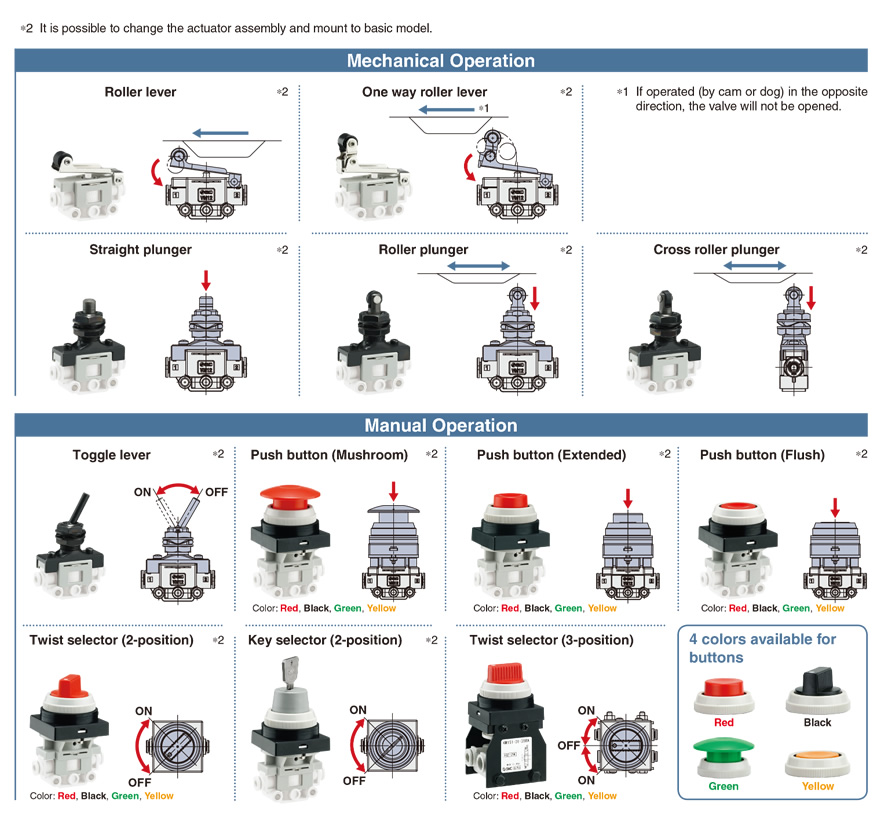

Actuator Variations
