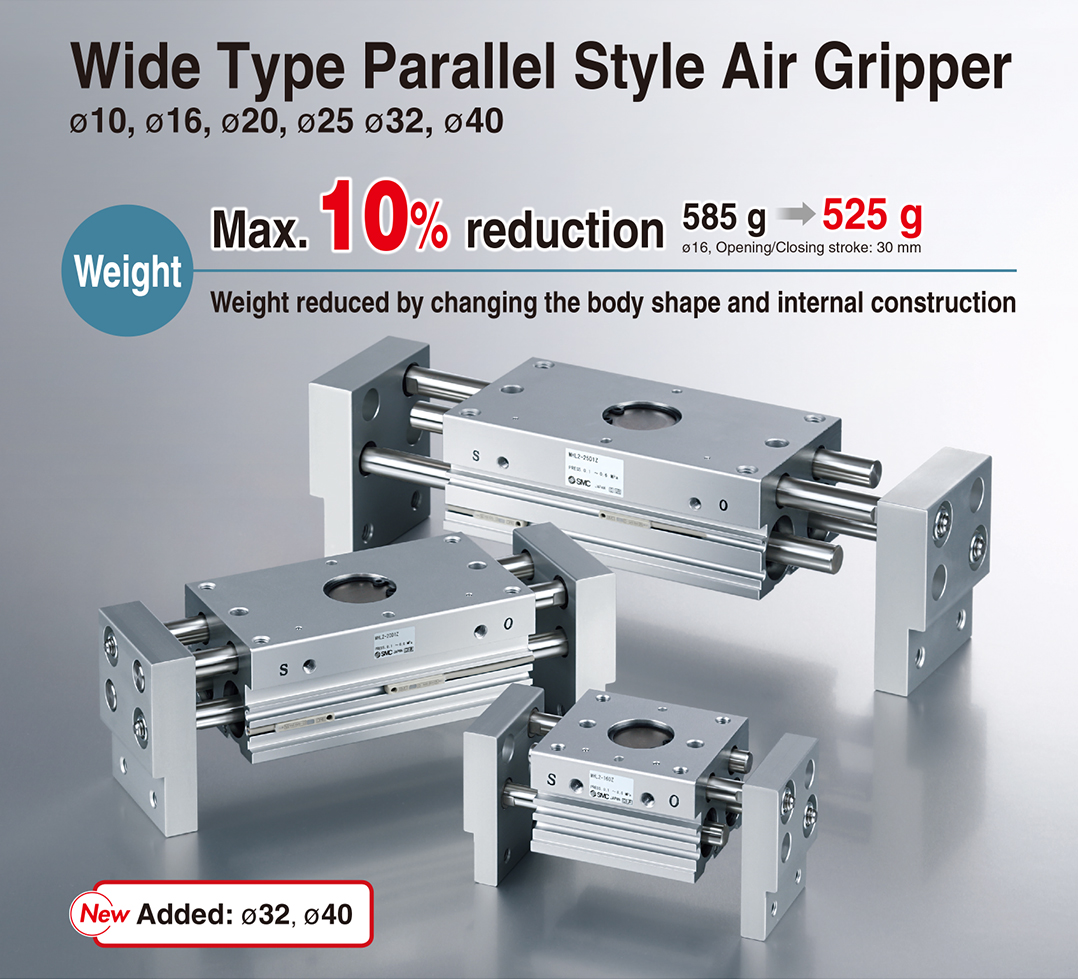

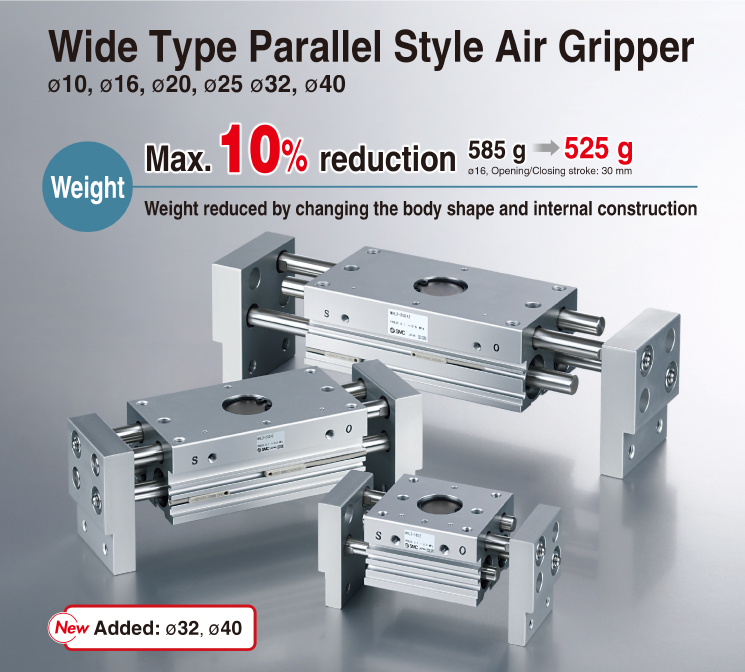

Wide Type Parallel Style Air Gripper MHL2
|
・Lightweight: Max. 10% lighter: 585 g → 525 g
Weight reduced by changing the body shape and internal construction ・Built-in dust protection mechanism (Standard) Dust-resistant option (Made to order: -X85, -X86□) ・Long stroke: One unit can handle workpieces of various diameters. ・A large amount of gripping force is provided, through the use of a double piston mechanism, while maintaining a compact design. ・Small auto switches can be directly mounted. |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
|---|---|
| MHL2-Z | 10，16，20，25，32，40 |
Wide Type Parallel Style Air GripperMHL2
| Series | Download |
|---|---|
| MHL2-Z |
|

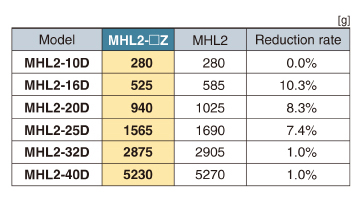

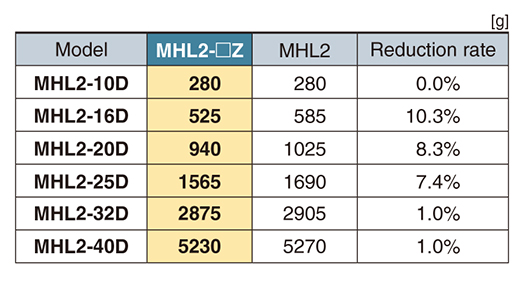

■Lightweight Weight Max. 10% reduction: 585 g → 525 g
■Lightweight
Lightweight body achieved by changing the body shape

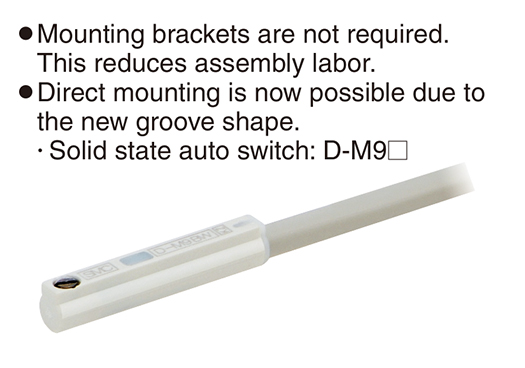

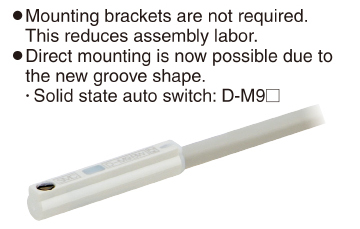

■Small auto switches can be directly mounted.

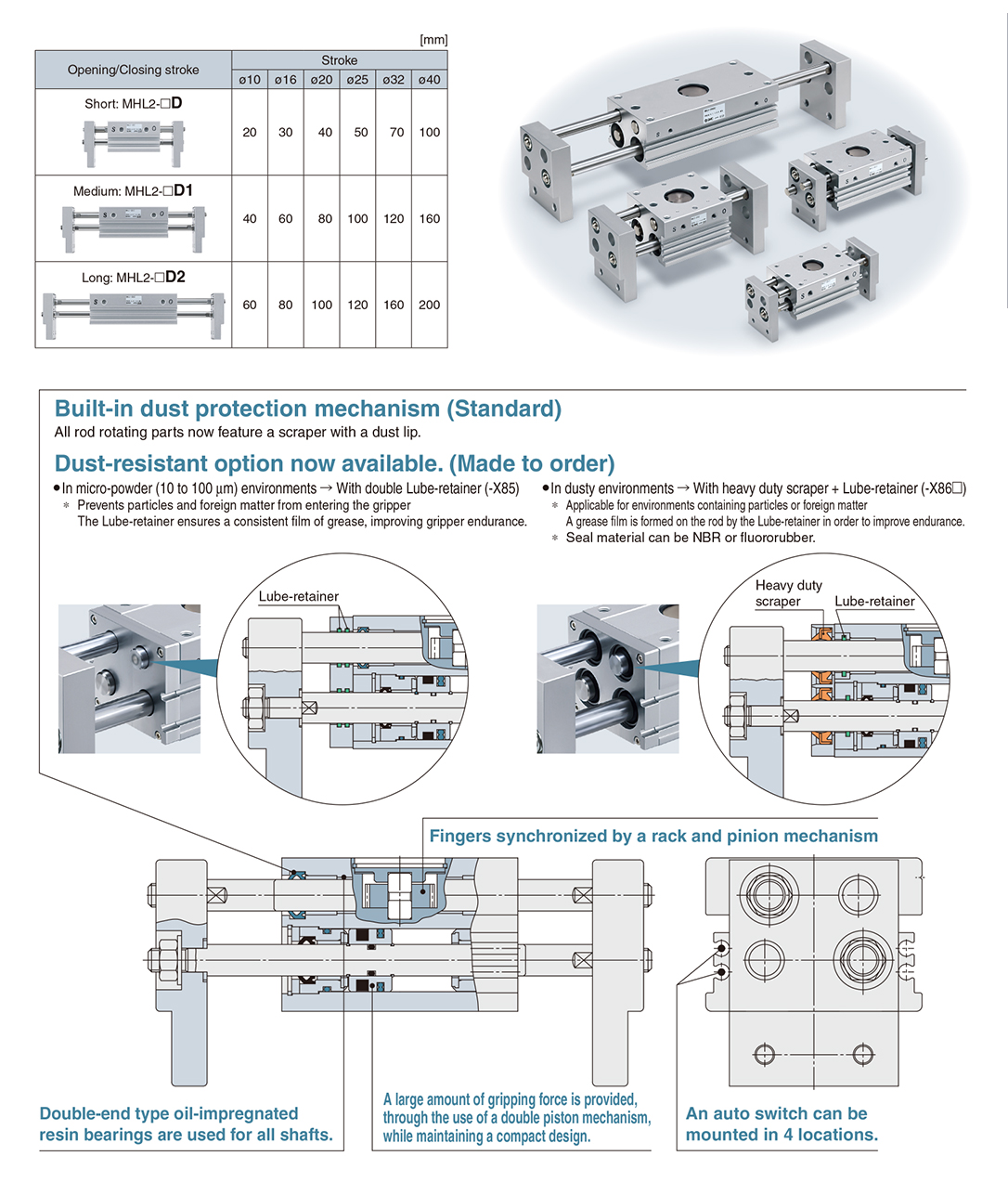

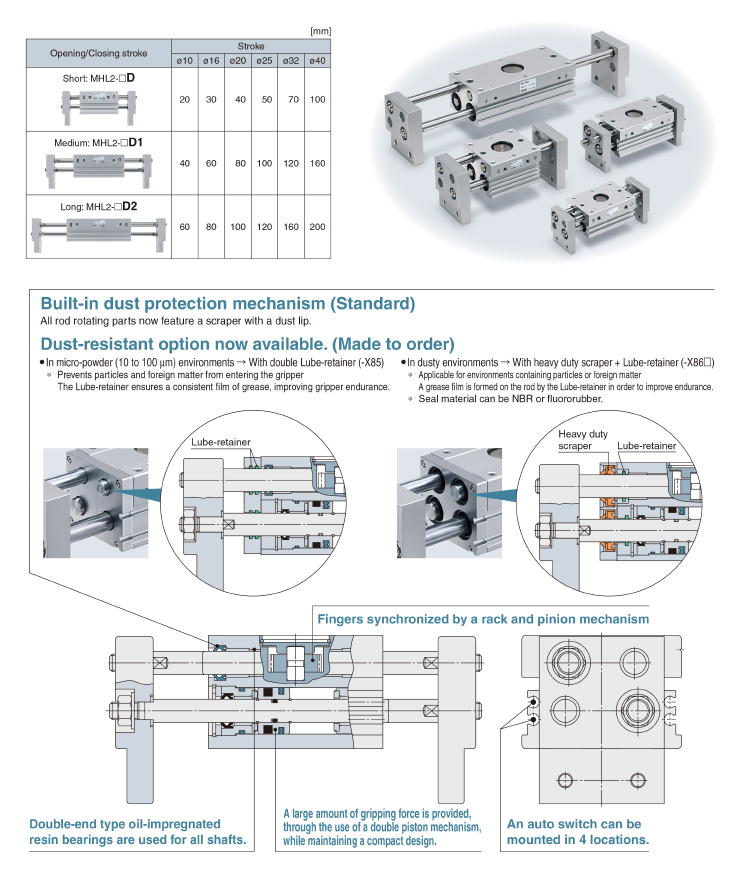

■Dust-resistant option now available. (Made to order: -X85, -X86 □)
■Closing width adjusting option now available. (Made to order: -X28)
■Performance and mounting dimensions are interchangeable with the existing model.
■3 Types of Stroke Variations

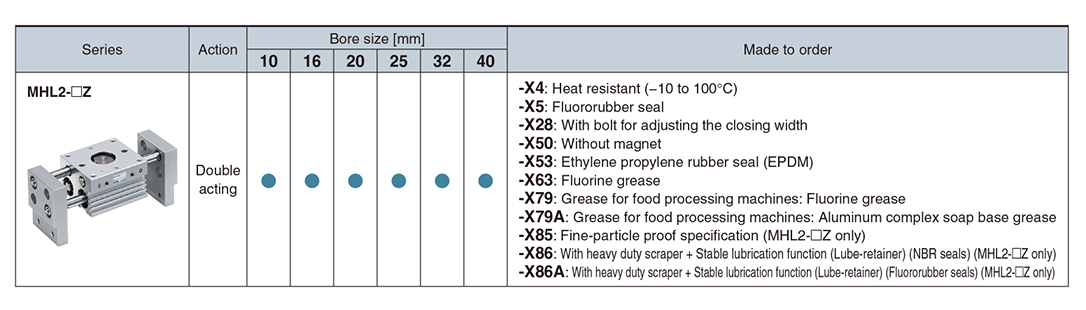

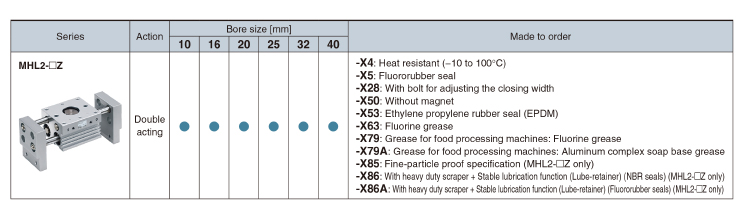

■Series Variations
