Compact Type Parallel Style Air Gripper JMHZ2
|
･ Although downsized, gripping point is maintained. (ø20 → ø16)
Overall length: Max. 21.7 mm shorter (102.7 mm → 81 mm) Thickness: Max. 7.6 mm shorter (33.6 mm → 26 mm) Weight: Max. 180 g lighter (420 g → 240 g) ･ High rigidity and precision are achieved by integrating the guide and finger in one piece. ･ With high-precision linear guide Repeatability: ±0.01 mm ･ Linear guide of the higher rigidity and precision is used. Higher rigidity |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
|---|---|---|
| Compact | JMHZ2 | 8，12，16，20 |
Compact Type Parallel Style Air GripperJMHZ2
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Download |
|---|---|---|
| Compact | JMHZ2 |
|

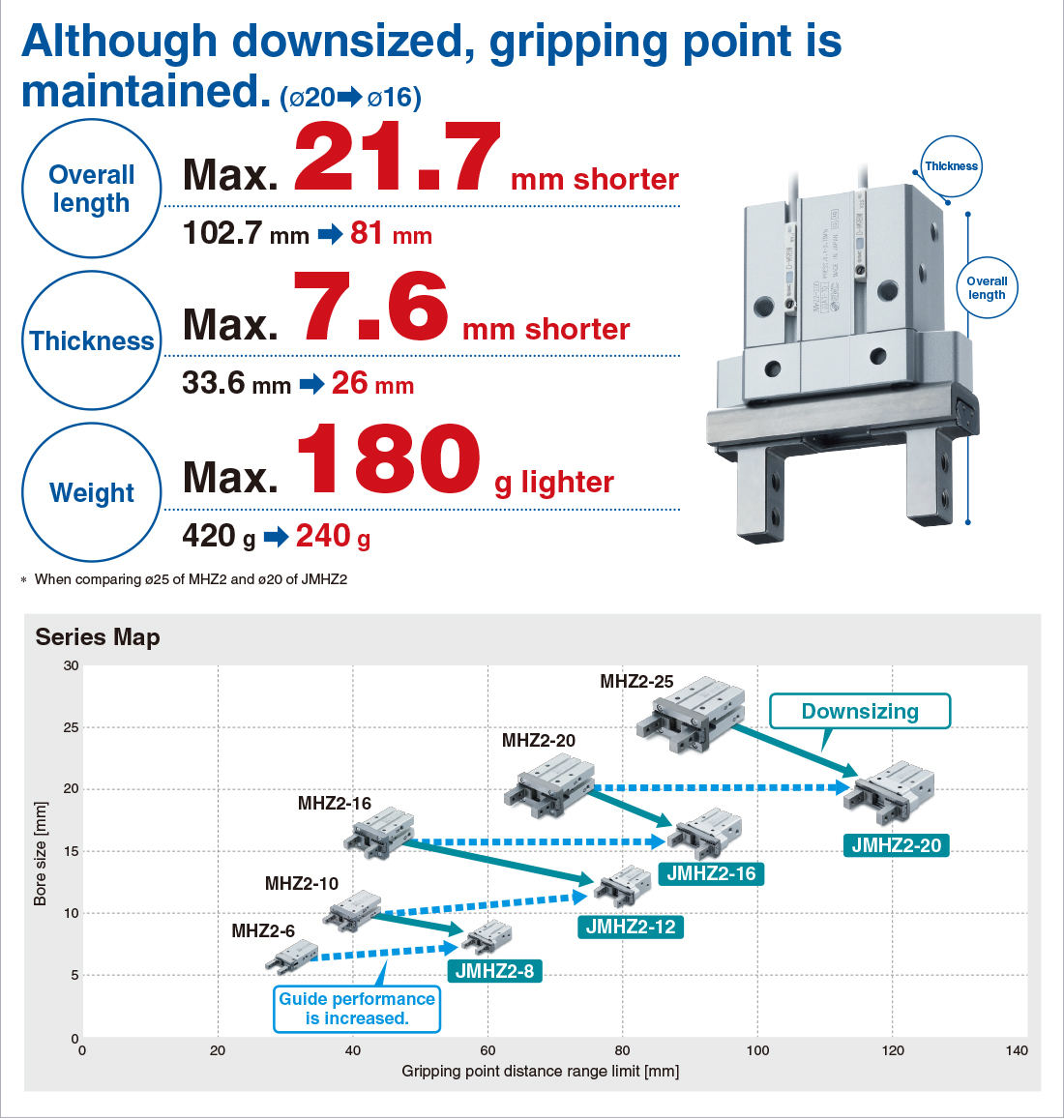

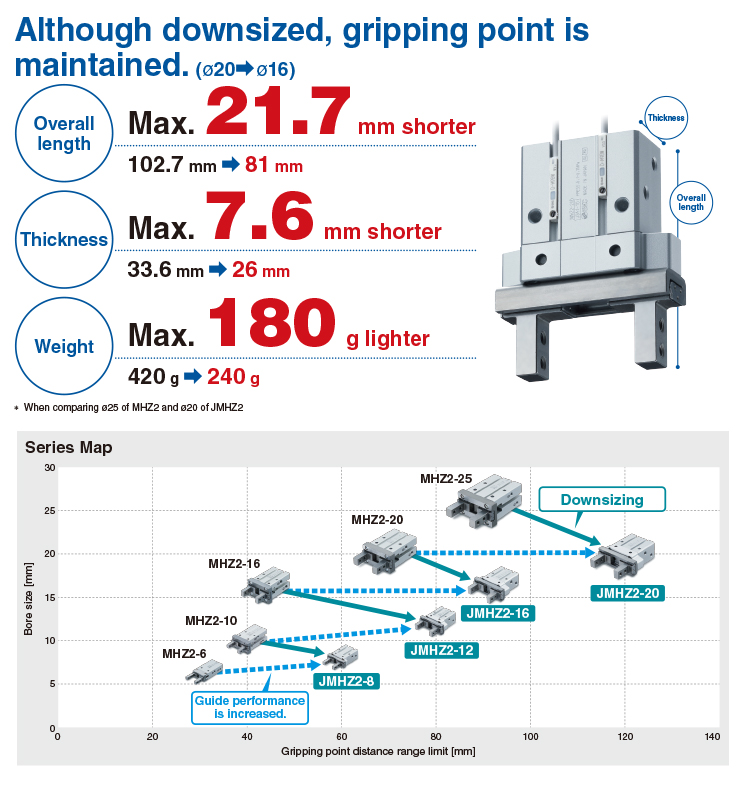

■Although downsized, gripping point is maintained. (ø20 → ø16)

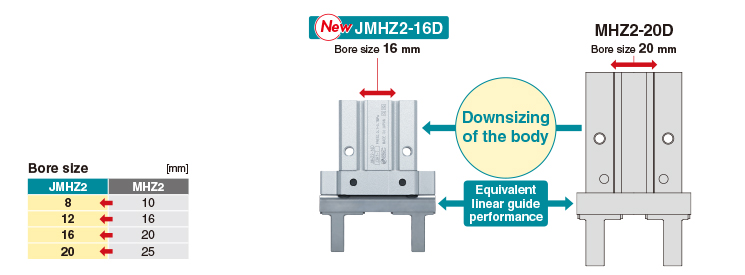

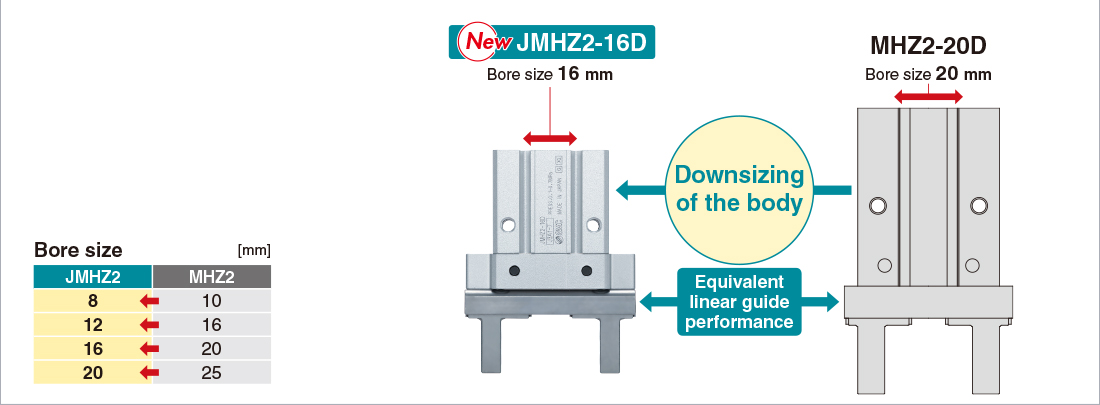

Downsizing
The same linear guide achieves one bore size smaller cylinder

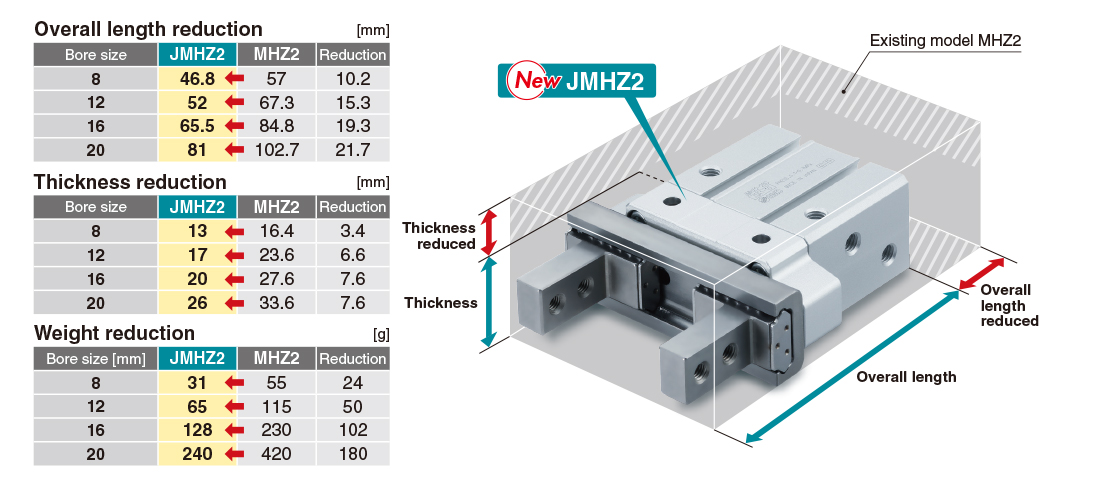

Compact and lightweight

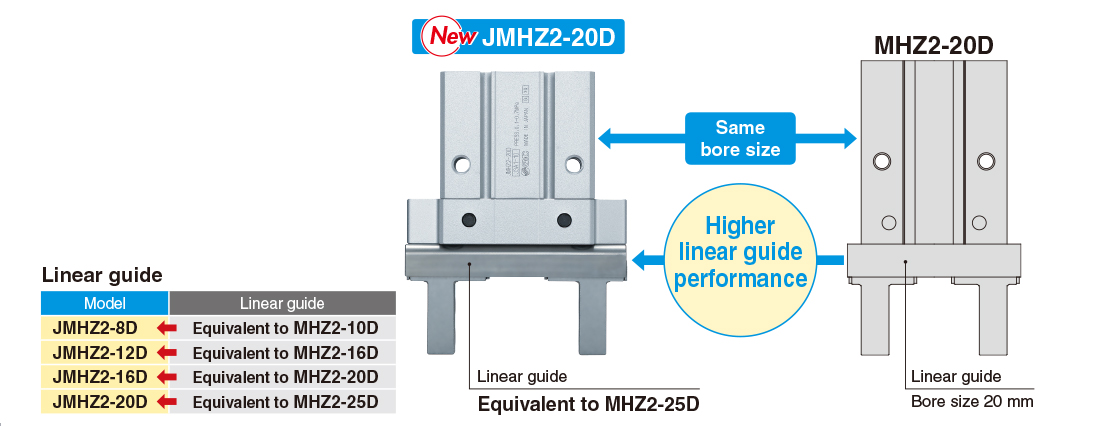

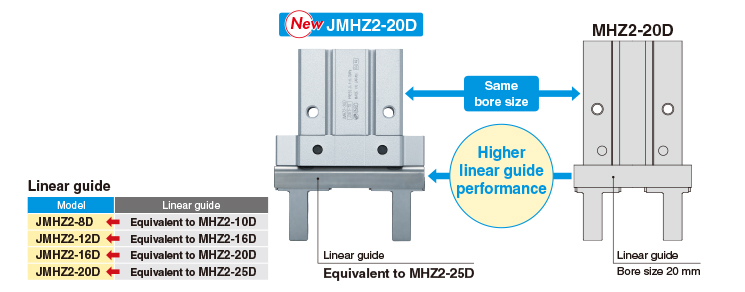

Guide performance is increased. Higher rigidity
・Linear guide equivalent to that of the larger bore size of the cylinder is used.
・Higher opening/closing stroke

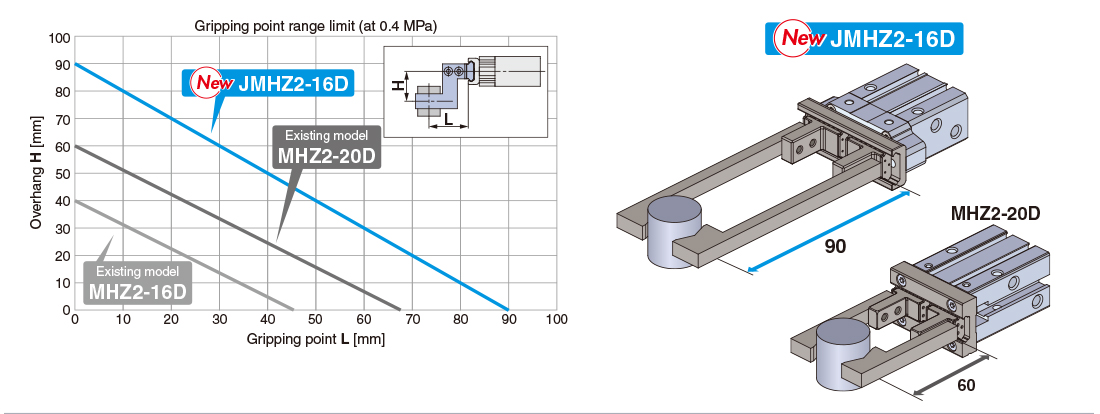

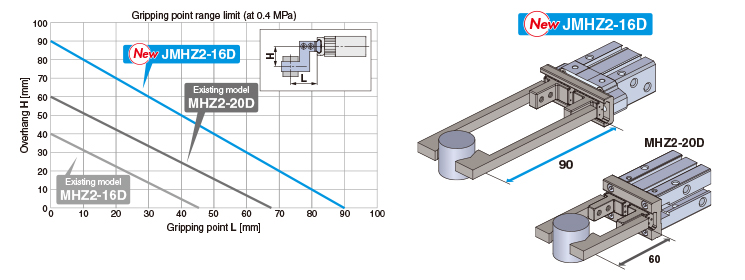

Longer gripping point
Longer gripping point is possible in cylinder one bore smaller.

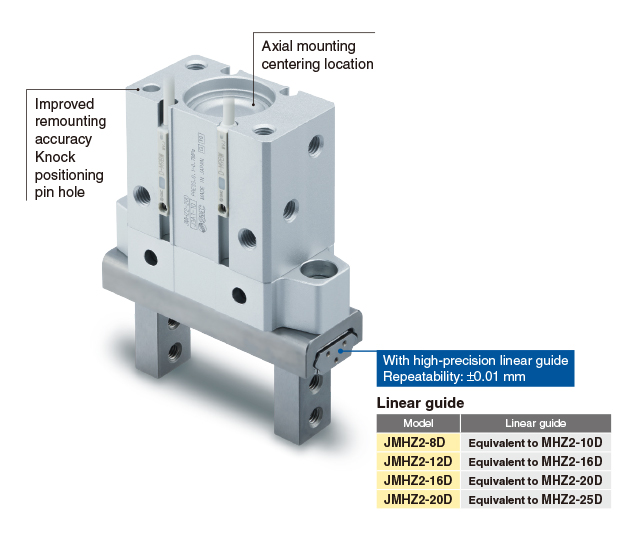

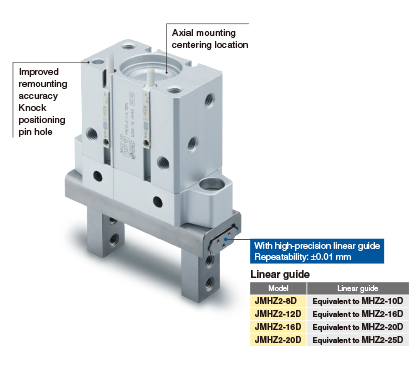

High precision

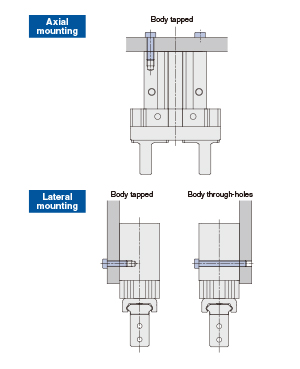

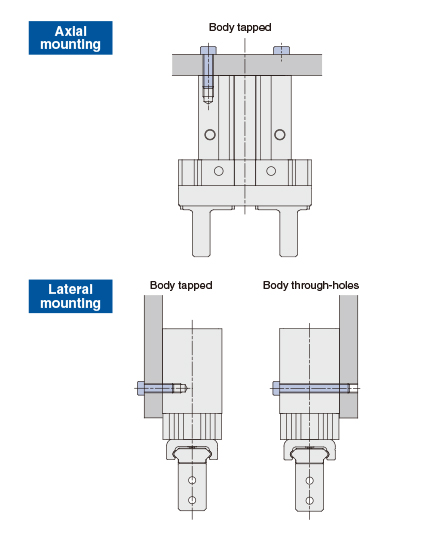

High degree of mounting flexibility
Can be mounted 3 ways from 2 directions

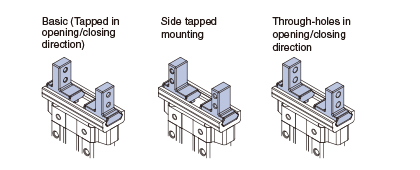

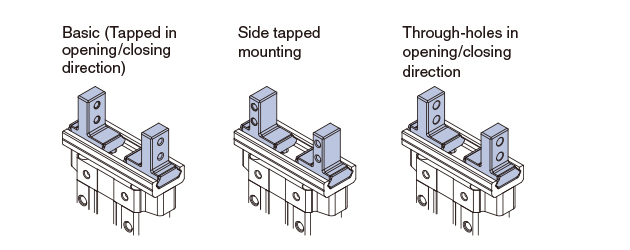

Finger options

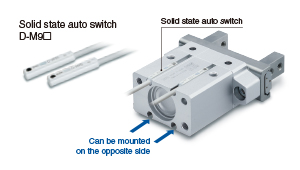

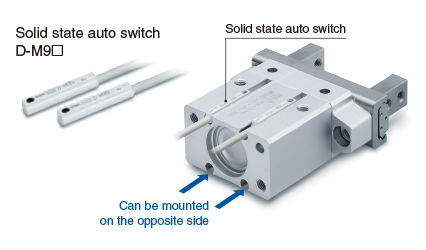

Compact auto switches are mountable.

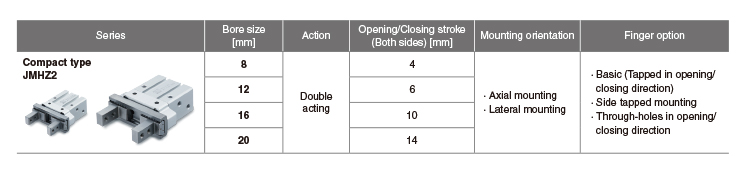

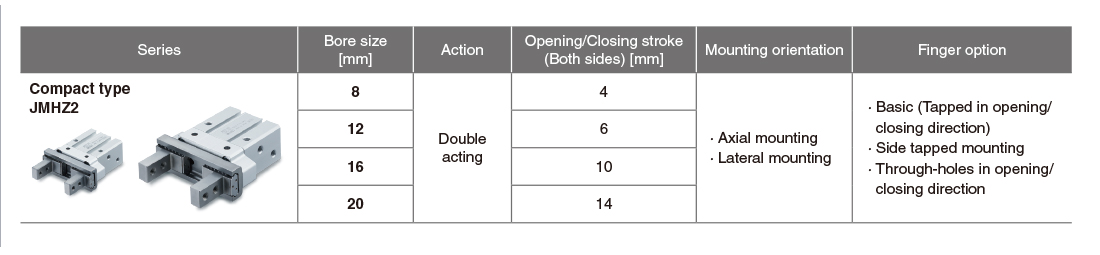

Series Variations
