Low Profile Air Gripper/With One Finger Fixed MHF2-□F

	・Width: Max. 25% reduction (40mm→30mm) ・Weight: Max. 25% reduction (275g→205g) ・The fixed finger can be set to a reference position. ・Fixed finger position adjustment function

Data Download PDF

Other Data	Safety Instructions　 Air Grippers/Precautions　 Auto Switches/Precautions　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b
With One Finger Fixed	MHF2-□F	8，12，16，20

Low Profile Air Gripper/With One Finger FixedMHF2-□F

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Download
With One Finger Fixed	MHF2-□F

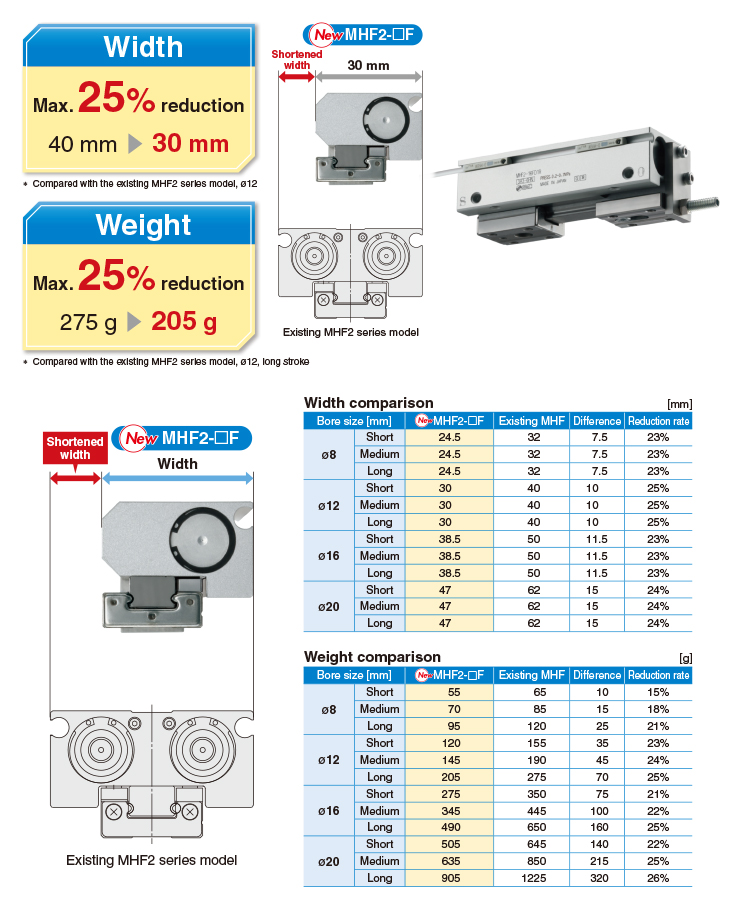

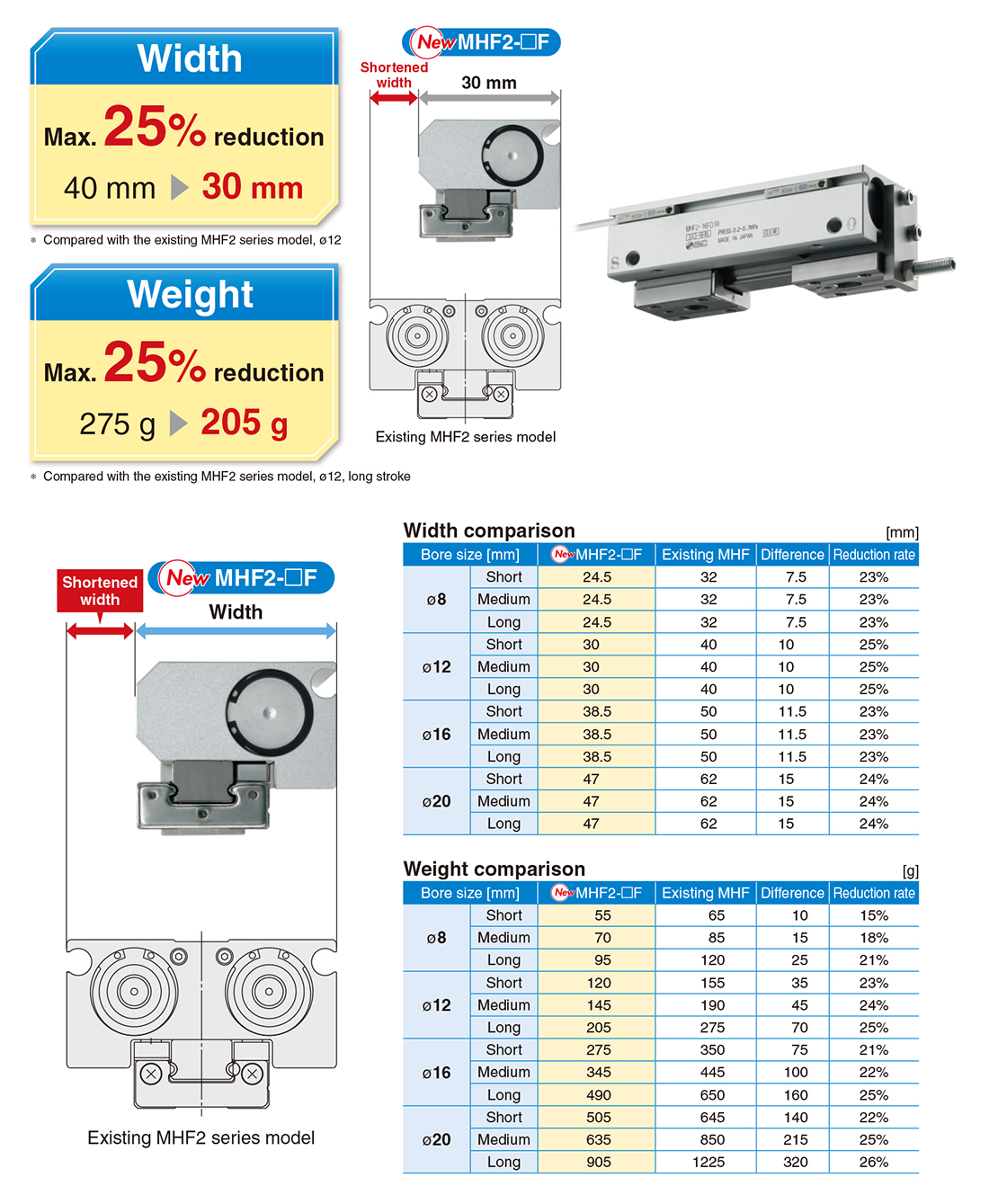

■Compact and lightweight

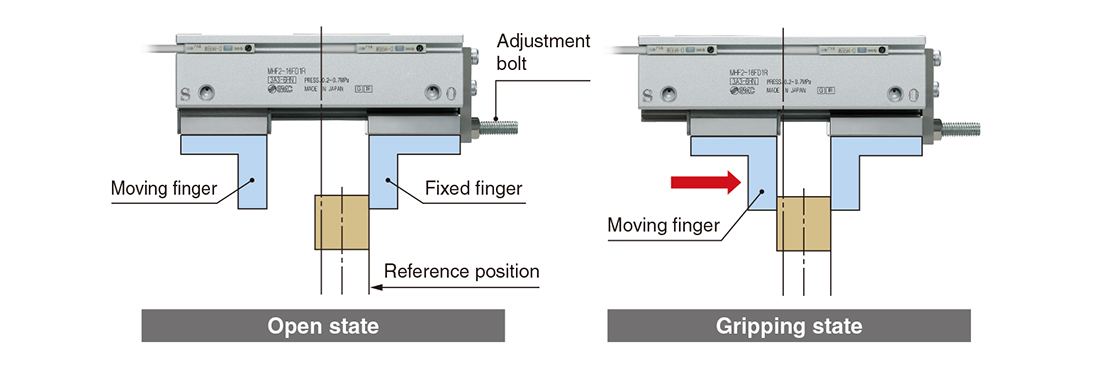

■The fixed finger can be set to a reference position.

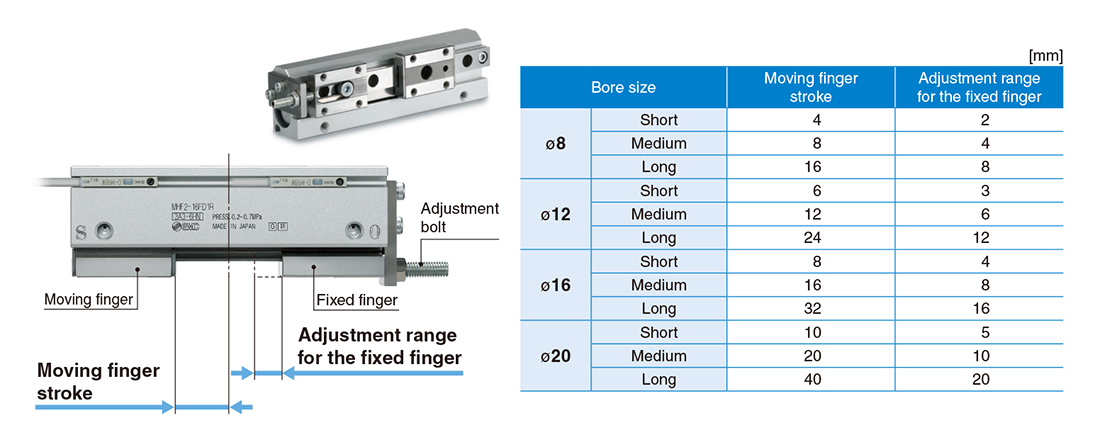

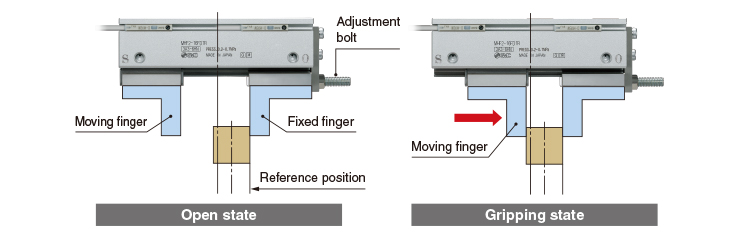

■Fixed finger position adjustment function

Fine adjustment is possible by using the adjustment bolt.

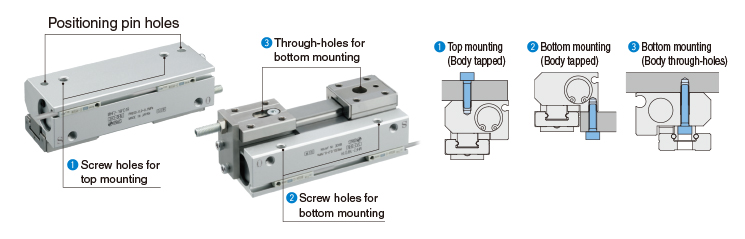

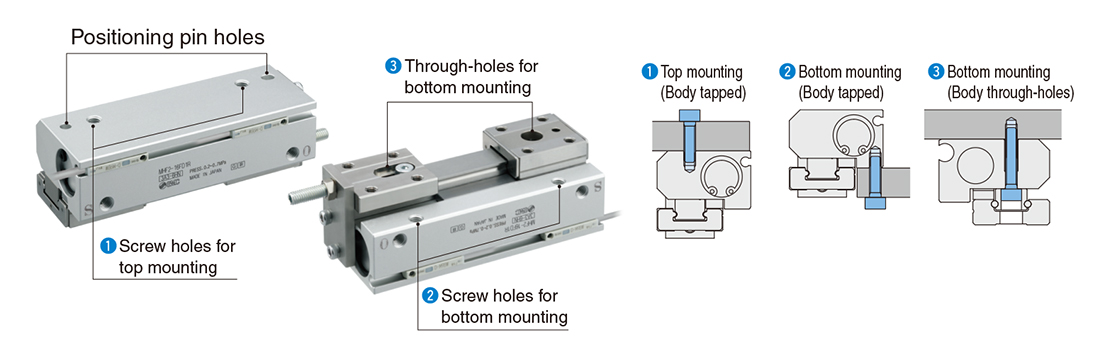

■Positioning pin holes have been standardized. 3 types of mounting are possible.

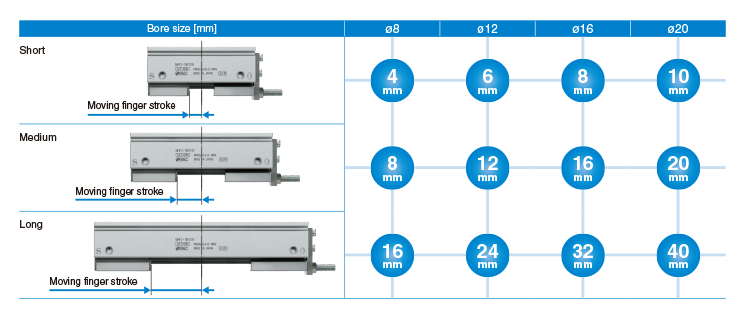

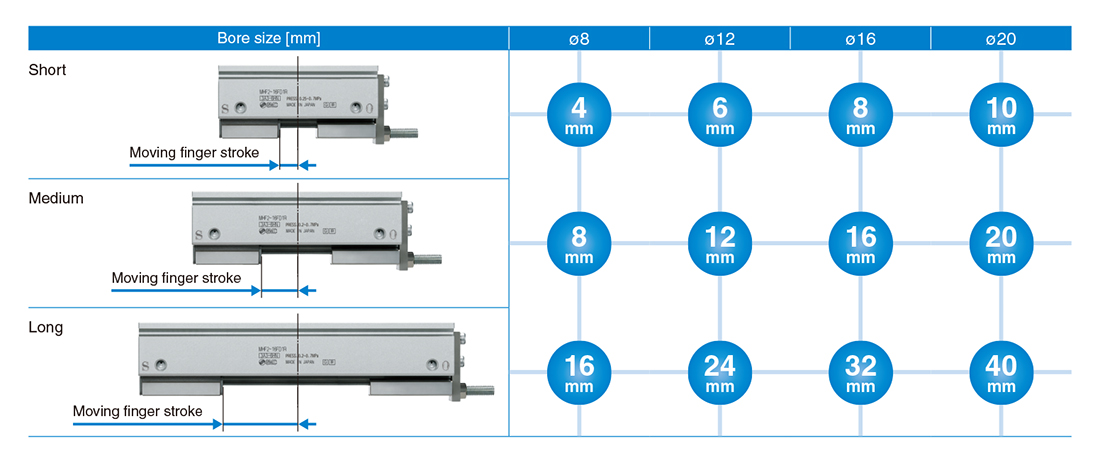

■3 stroke lengths can be selected for moving finger.

3 standard stroke lengths are available for each bore size. Stroke can be selected to suit the workpiece.

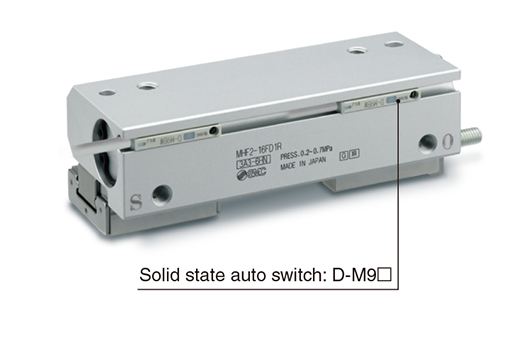

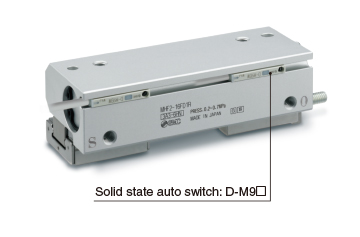

■Compact solid state auto switches are mountable.
