Silencer/Compact Resin Type AN

Data Download CAD PDF

Other Data	Safety Instructions　 Series Variations　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］
AN05 to 40	・Compact/lightweight ・Noise reduction: 30 dB (A)
AN10 to 30-C	・Can connect with One-touch fitting directly. ・Noise reduction: 30 dB (A)

Silencer/Compact Resin TypeAN

Series	Download
AN05 to 40
AN10 to 30-C

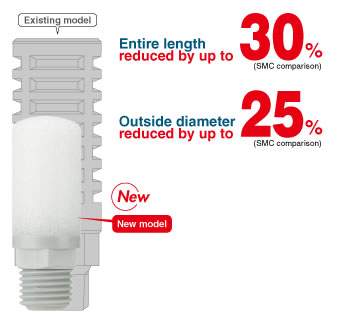

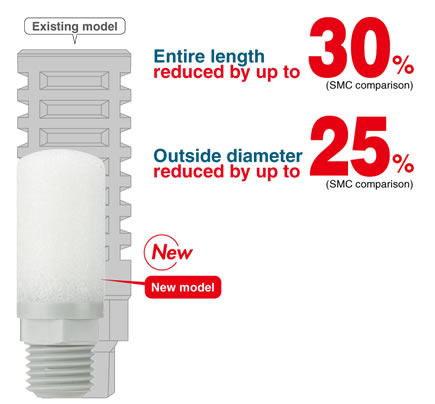

■The resin silencer is now a more compact size!

Noise reduction improved：30dB（A）

The value of the noise reduction for the existing model AN□03 (compact type) is 25 dB(A).

Sonic conductance C: 1 to 18 [dm³/(s·bar)] Connection method

M thread, R (NPT) thread type
One-touch fitting connection type

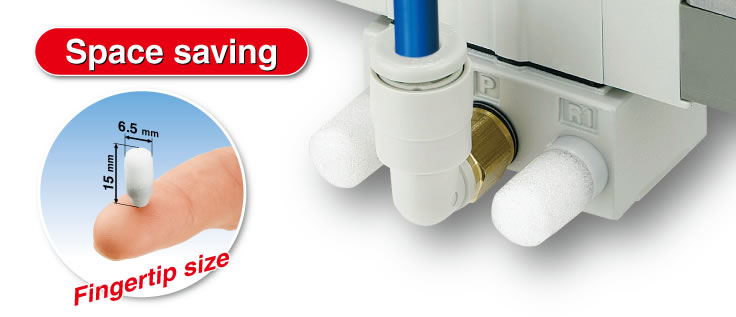

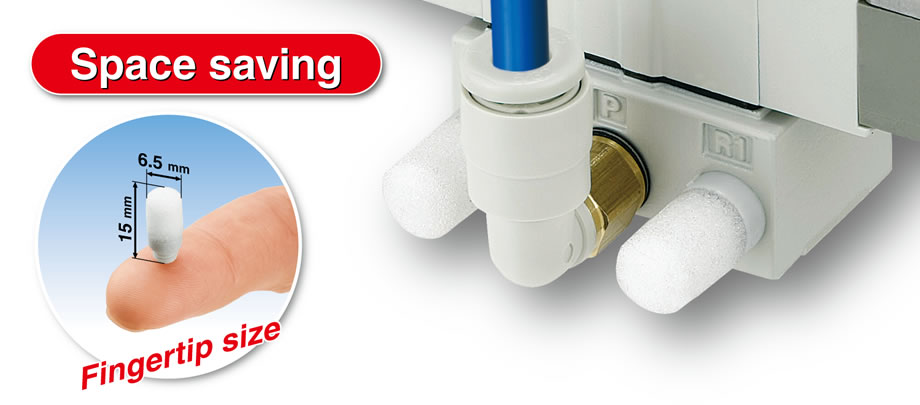

■The M5 silencer is now added!

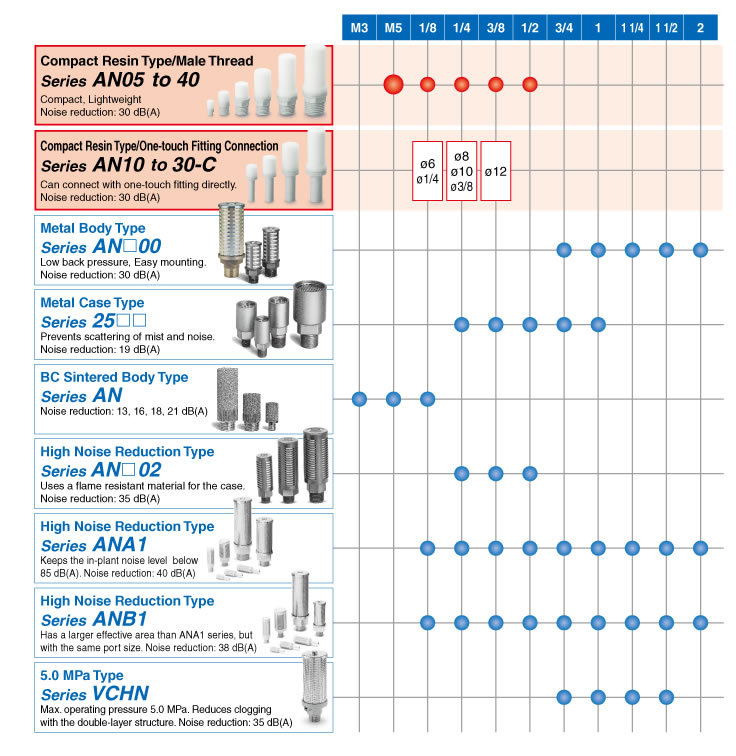

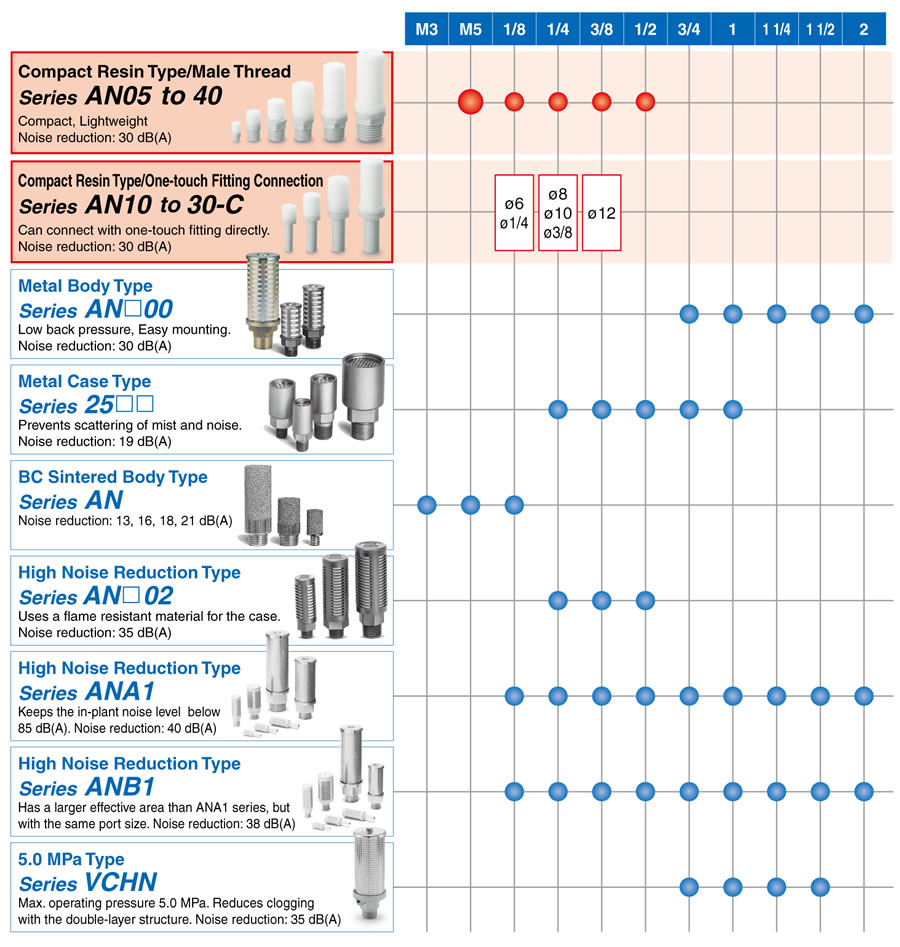

■Silencer Variation
