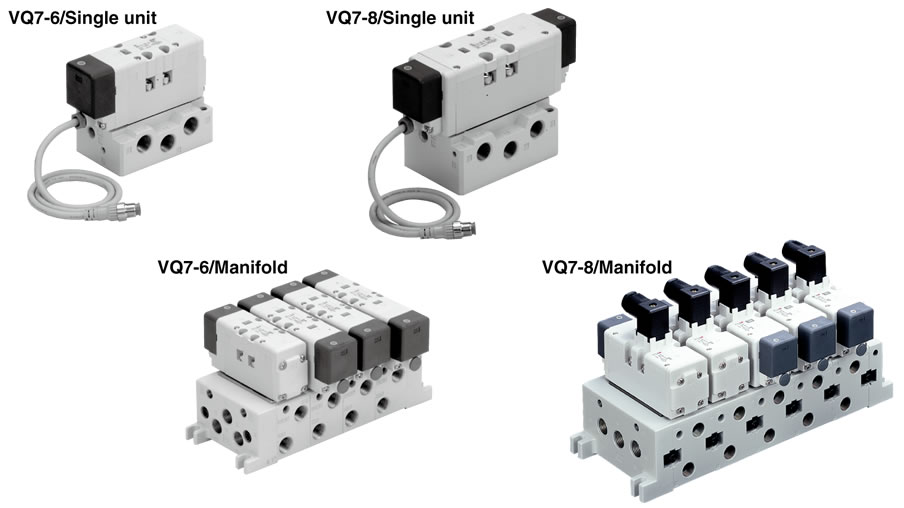

5 Port Solenoid Valve/ISO Standard VQ7-6/7-8
|
・Compliant with ISO Standards
・Manifold type no.: VV71, VV72 |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
Model |
|---|---|---|---|---|---|
| VQ7-6 | 6.0 | 0.11 | 1.4 | φ100 | 1.0 |
| VQ7-8 | 13 | 0.27 | 3.3 | φ140 | 1.0 |

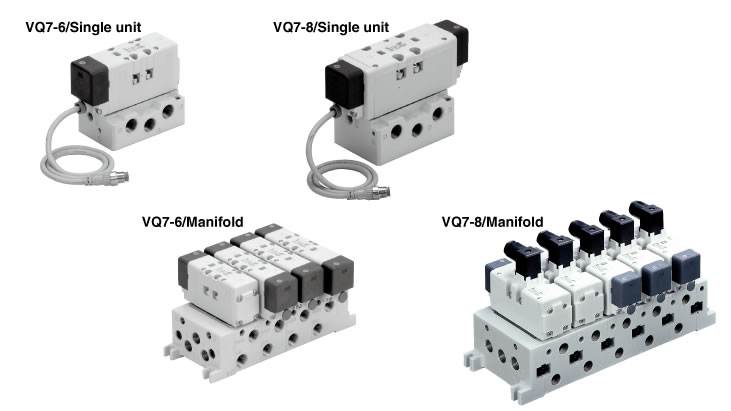

5 Port Solenoid Valve/ISO StandardVQ7-6/7-8
| Series | Download |
|---|---|
| VQ7-6 |
|
| VQ7-8 |
|
■Conforms to ISO standard 5599/I
Interface conforms to ISO standard Size 1 (VQ7-6) and Size 2 (VQ7-8).
■Enclosure IP65 compliant Dusttight/Low jetproof type
■A wide variety of manifold options
Manifolds can be configured with a wide range of interface options to meet a variety of application requirements.
■Lighter weight
Size 1 (3 position) 0.48 kg ···24% less*
Size 2 (3 position) 0.75 kg ···15% less*
*Compared with previous series
■Space-saving profile
Installation space······13% reduction*
Installation volume···· 10% reduction*
*Compared with previous series
■Choice of metal or rubber seal increases compatibility with various operating and environmental conditions.
