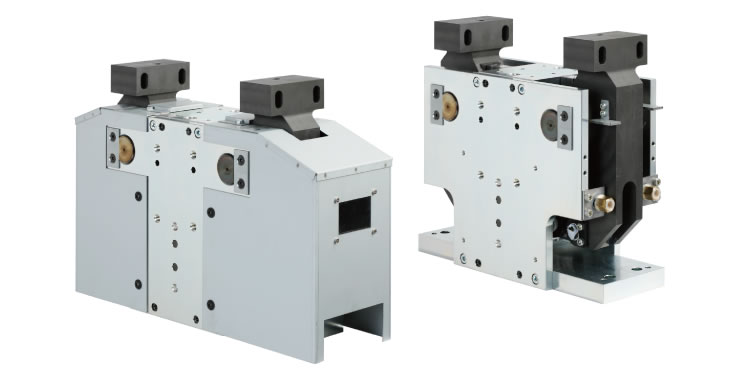

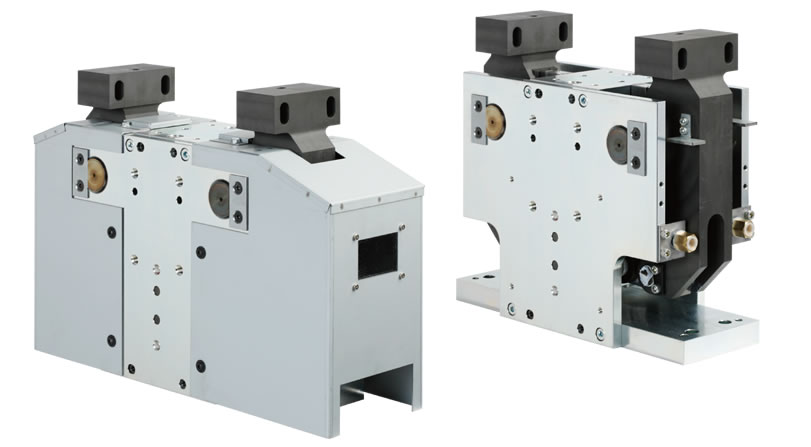

Frame Clamp Cylinder WRF100

	・High output: 20,000 N (at 0.5 MPa)

Data Download CAD PDF

Other Data	Safety Instructions　 Actuators/Precautions　 Introduction of Arc Welding Process Equipment　 Green Procurement (RoHS)

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Flow characteristics 4/2→3/5（A/B→E） b
WRF100	100	48

Frame Clamp CylinderWRF100

Series	Flow characteristics 4/2→3/5（A/B→E） C［dm³/（s・bar）］	Download
WRF100	100

■High output 20,000 N (Operating pressure: At 0.5 MPa)

High clamping force makes it suitable for a broad range of applications

High repeatability

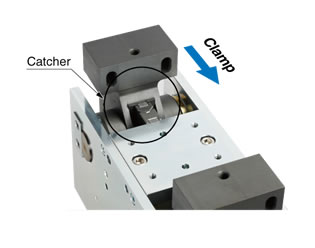

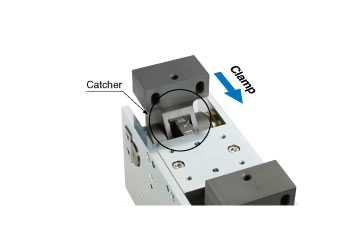

Catcher (detented positioning structure) is a standard feature for repeatable positioning.

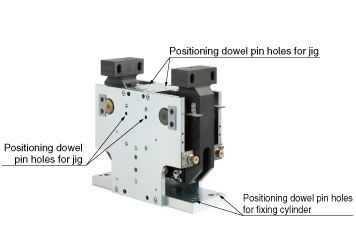

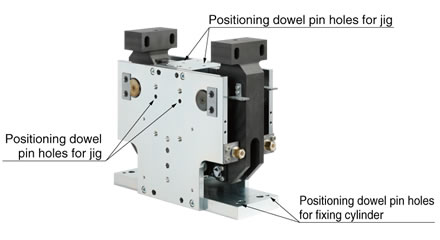

Dowel pin holes for repeatable mounting when reassembling

Allows for repeatable mount positioning in reassembly.

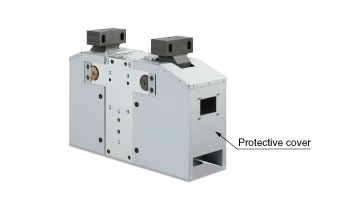

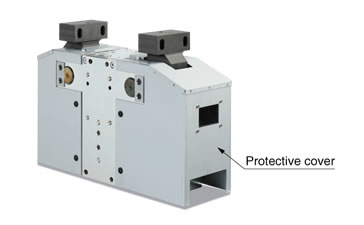

Optional spatter protective cover available

Modular structure allows easy assembly even after the cylinder is installed.

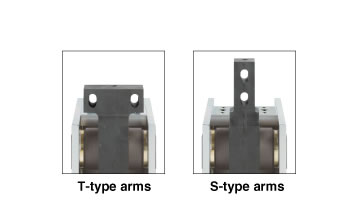

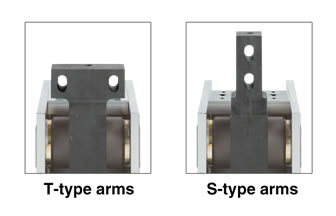

Standardized T-type arms and S-type arms

Shape selectable to meet specifications/application.
T-type arm width: 200, 240, 270 mm
S-type arm width: 130, 200, 240 mm
