For High Precision Positioning Pin Shift Cylinder CKQG-X2370
|
・High Precision: Rod end deflection ±0.1 mm or less
・Position Reproducibility ・Pin for positioning the workpiece provided by the customer can be directly mounted. ・Built-in coil scraper ・Reduces labor time by integrating the cylinder and guide. ・Magnetic field resistant auto switches are mountable. |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
|---|---|---|---|
| Built-in standard magnet type | CKQG-X2370 | 32, 40, 50 | 25, 30, 40, 50 |
For High Precision Positioning Pin Shift CylinderCKQG-X2370
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Download |
|---|---|---|
| Built-in standard magnet type | CKQG-X2370 |
|

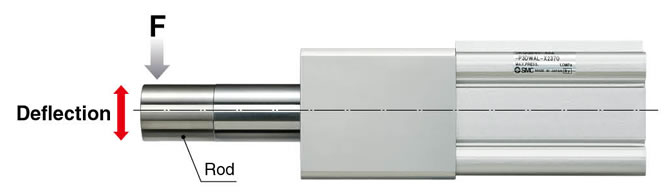

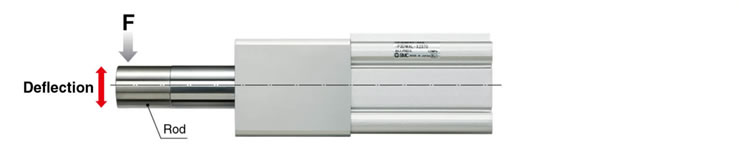

■High Precision Rod end Deflection ±0.1 mm or less
Rod end deflection of ±0.1 mm or less is achieved when a load is applied to the rod at its extension end.

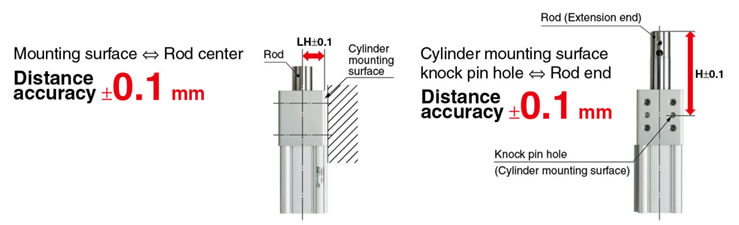

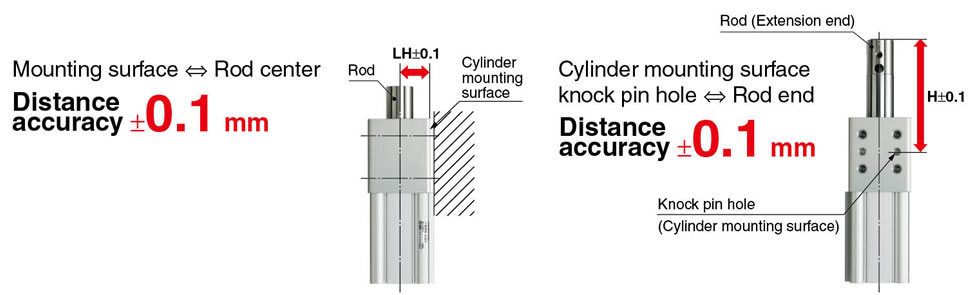

■Position Reproducibility
Mounting surface ⇔ Rod center Distance accuracy ±0.1 mm
Cylinder mounting surface knock pin hole ⇔ Rod end Distance accuracy ±0.1 mm

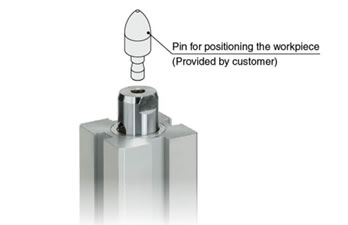

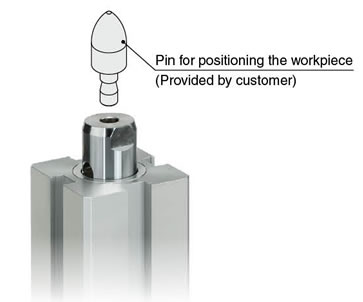

■Pin for positioning the workpiece
provided by the customer can
be directly mounted.

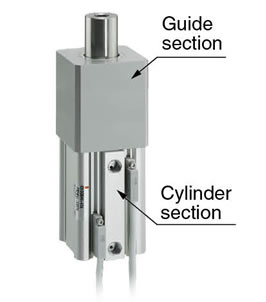

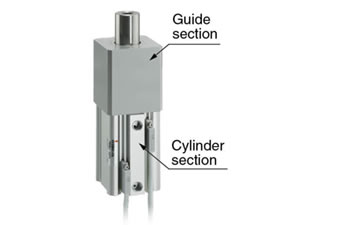

■ Reduces labor time by
integrating the cylinder and
guide.
- Reduction in design labor
- Reduction in assembly labor
■Built-in coil scraper
Removes welding spatters, foreign matter, cutting chips, etc. sticking to the piston rod.

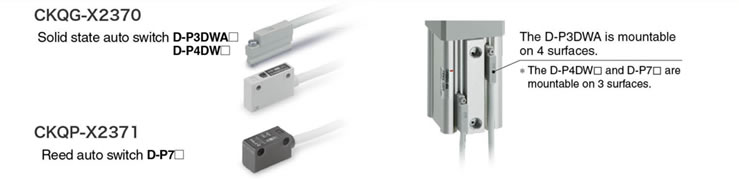

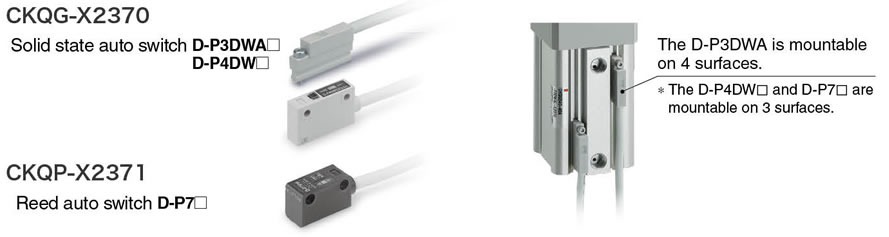

■Magnetic field resistant auto switches are mountable.
