Step Motor Controller/CC-Link Direct Input Type LECPMJ
|
・CC-Link Ver. 1.10 compatible
・External data import function ・Position and speed can be monitored by the PLC touch panel (display). ・Step data can be edited from the PLC touch panel (display). |
|
| Other Data |
|---|
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Flow characteristics 4/2→3/5（A/B→E） b |
Applicable cylinder size |
Power consumption (W) |
|---|---|---|---|---|
| CC-Link direct input type |
LECPMJ | Step motor (Servo/24 VDC) |
24 VDC ±10% |
CC-Link Ver.1.10 |
Step Motor Controller/CC-Link Direct Input TypeLECPMJ
| Series | Flow characteristics 4/2→3/5（A/B→E） C［dm3/（s・bar）］ |
Download |
|---|---|---|
| CC-Link direct input type |
LECPMJ |
|
■CC-Link Ver. 1.10 compliant

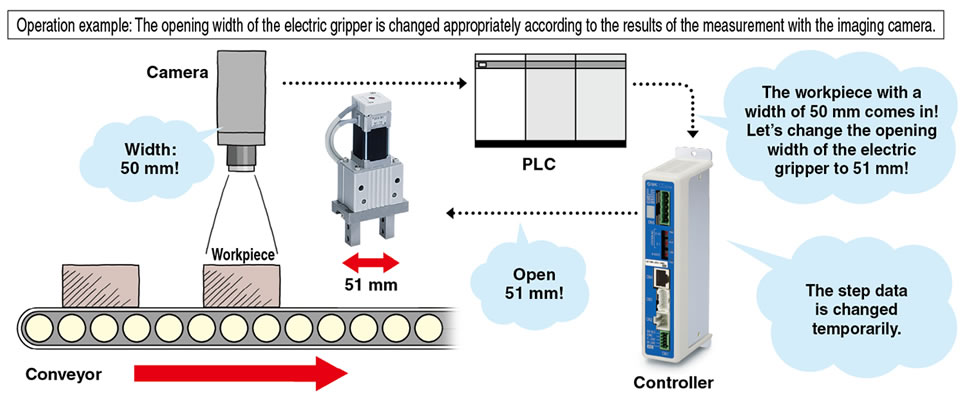

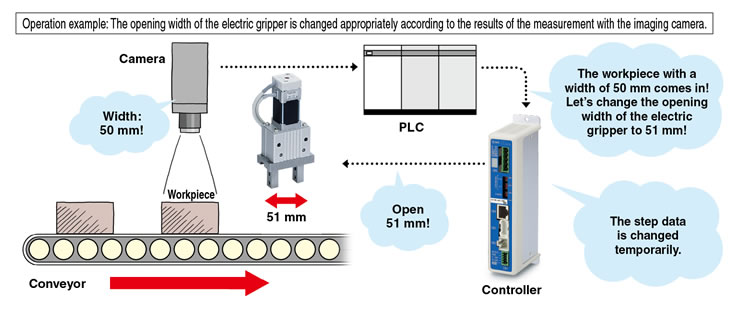

■External data import function
■External data import function
- The step data can be rewrite temporarily by feeding back external information to the PLC.
- 64 or more data points can be defined with the 3 types of data import modes.

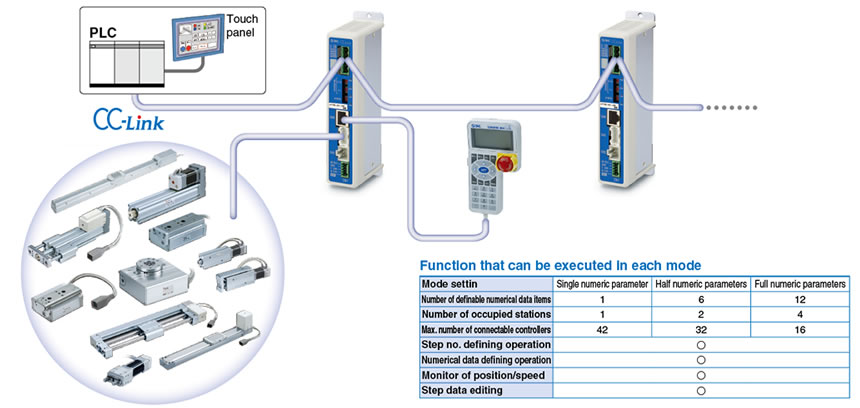

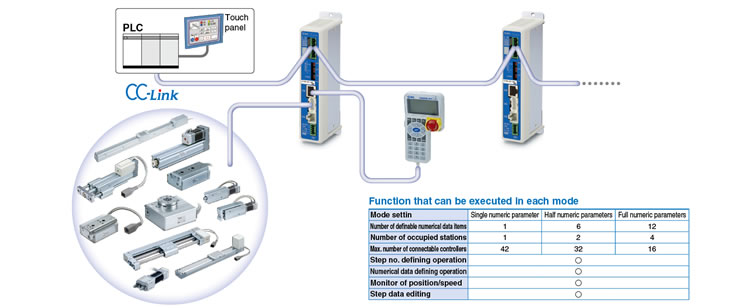

- 3 types of data import modes
(1)Single numeric parameter (Number of occupied stations: 1): Movement MOD (movement mode) and another parameter item are changed.
(2)Half numeric parameters (Number of occupied stations: 2): Up to 6 parameter items are changed at once.
(3)Full numeric parameters (Number of occupied stations: 4): Up to 12 parameter items are changed at once.
■Position and speed can be monitored by the PLC touch panel (display).
■Step data can be edited from the PLC touch panel (display).
(Except in the case of the single numeric parameter)
■Step data can be edited from the PLC touch panel (display).
(Except in the case of the single numeric parameter)
